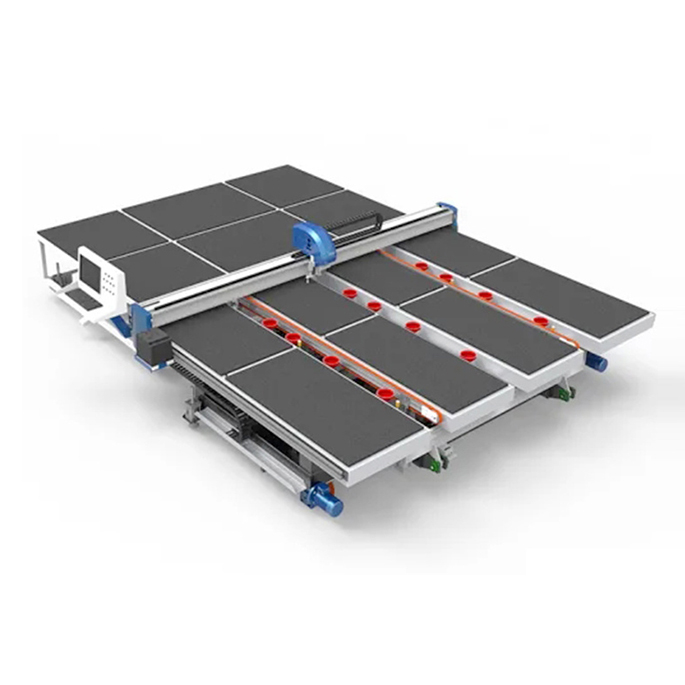

ZXQ Series CNC Cutting Machine (Loading Cutting And Breaking)

Quantity:
Availability:





Inquire Add to Basket

Product Description

ZXQ Series CNC Cutting Machine (Loading cutting and breaking)

Description:

The Multifunctional Glass Cutting Machine, which integrates automatic glass loading, automatic glass cutting, air floating glass breaking, automatic glass labeling, automatic glass conveying, automatic walking and other functions.

It is an alternative to the three machines of the glass loading table, the glass cutting machine and the glass breaking table.

The machine implements remote control operation.From the glass loading to the glass cutting ,the whole process is automatically controlled.

It greatly reduces the labor intensity and safety risks of workers, and has the advantages of convenient operation, small investment and high efficiency, which greatly reduces the comprehensive cost of equipment use, and is the best choice for glass processing enterprises.

Main Technical Parameter:

MODEL NO.	Max Glass Size（mm）	Max Glass Weight（kg）	Work time（s）	Thickness（mm）	Power（kW）	Mach.Size(mm)
ZXQ-L2621	2440×2000	250	≤40	3～20	8	310036001400 （Table Height 820mm）
ZXQ-L3826	3660×2440	500			10	363047001400 （Table Height 820mm）
ZXQ-L3829	3660×2800	700			10	393047001400 （Table Height 820mm）
ZXQ2621	2440×2000	No adsorption			4	360029001400 （Table Height 820mm）
ZXQ3826	3660×2440	No adsorption			5	470036001400 （Table Height 820mm）
ZXQ-3829	3660×2800	No adsorption			6	470039001400 （Table Height 820mm）
Breaking Table Size : 25002500mm, 25003800mm

Application:

Architectural glass, car glass, furniture glass, craft glass, decorative glass, cupboard glass, hollow glass,and compact mirror.

Component:

1.Automatic Loading Glass:

automatically walks and rotates to find the glass,

2.Automatic optimize type setting glass

3.Automatic cutting glass

4.Air floating breaking glass

5.Fault alarm detection system

6. Glass labeling function as option part

7.Automatic conveying belt as option part

8.Glass breaking table as option part

Component introduction:

	Function	Functional description	Picture display
√	Automatic loading glass	Smart suction After one-touch start of the glass, the machine automatically raises the boom, automatically walks and rotates to find the position and angle of the glass, and is equipped with a suction monitoring system to automatically lift the glass to the cutting table after the glass is sucked, complete the film, and the machine automatically Perform the work of positioning scan cutting.
√	Automatically optimize type setting glass	Just need enter the original size, the size of the glass to be cut, and the cut shape.Automatic glass layout and automatic optimization greatly saves the cost of using original glass
√	Automatic cutting glass	The cutter head is made of German Boler head and can be rotated freely in 360 degrees to cut any shape. Computer control, automatic cutting according to optimized layout
√	Air floating breaking glass	The machine has an air floating system, and more than one hundred air holes are evenly arranged on the cutting table to ensure the stability of the airflow. It is very easy to push and pull the glass, and breaking glass is easier.
√	Fault alarm detection system	If the machine is faulty, the machine will automatically detect the cause and alarm, display the cause of the fault in the display, and provide corresponding solutions.The problem is solved more conveniently and timely, without delaying production. (Multi-language optional)
Can choose to add	Glass labeling function	Automatic reading: Automatically read programs without manual operation Automatic printing: automatically print out the glass size, customer information, order number and other information on the label Automatic paste: label paper is automatically attached to the corresponding position of the glass.no leakage, no mess, customer information at a glance.
Can choose to add	Automatic conveying belt	Increase the output,you can choose to add the conveyor belt, and automatically transfer it to the glass breaking table after cutting. Save time, effort, and labor
Can choose to add	Glass breaking table	It can be equipped with the glass breaking table, which can be used in conjunction with the cutting machine. Cutting while performing breaking glass,Greatly increased production
